LV Products

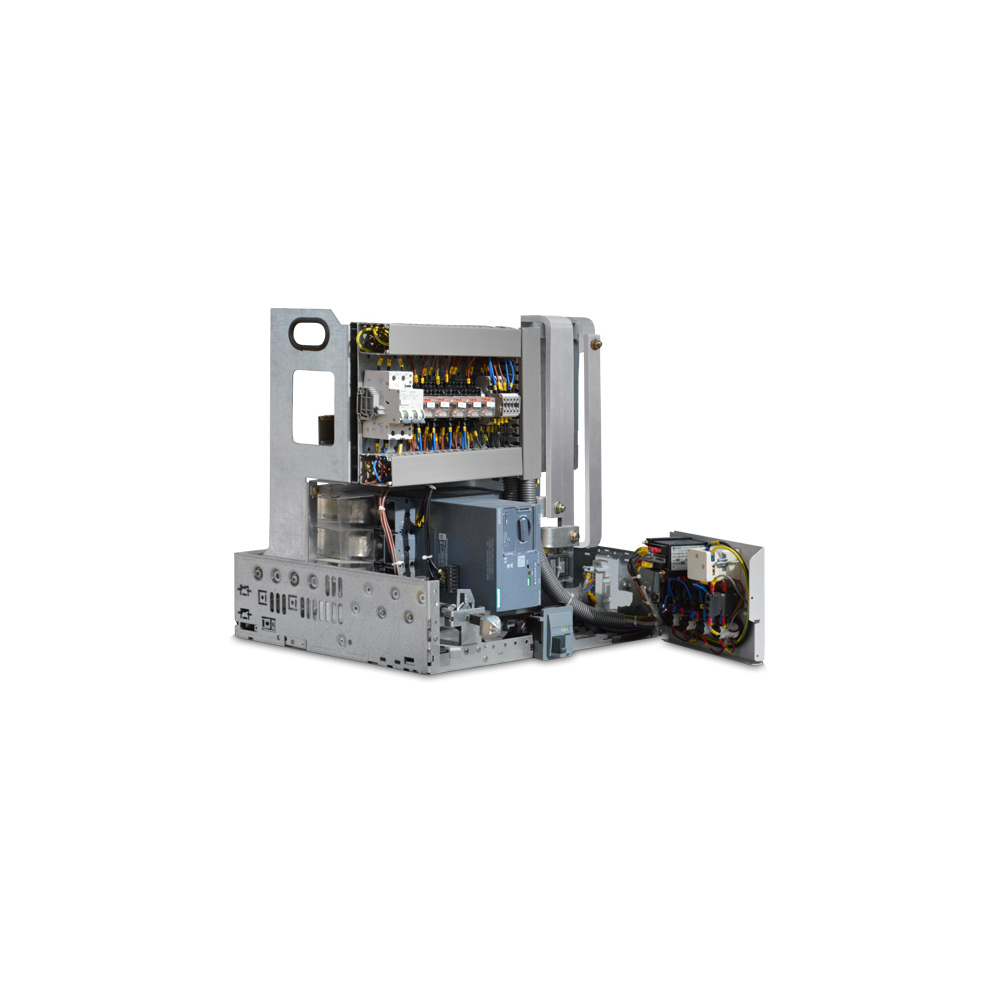

SIVACON S8
Low Voltage Switchboard
Rated Current : Up to 7000A
Rated Short Time Withstand Current Icw : Up to 150 KA
Rated peak withstand current Ipk : up to 330 KA
Rated Operational Voltage : Up to 690V
Type of Switchgears: Draw out, Plug in, Fix
Type of connection : Front/Rear
Classification of switchgear is according to : IEC 61439-2
|
1.Circuit Breaker Design |
|
|
Mounting Design |
Fixed-mounted design Withdrawable |
|
Functions |
Supply Outgoing Coupling |
|
Rated Values |
Up to 6,300A |
|
Connetion Position |
Front/ Rear |
|
Cubicle width (mm) |
400, 600, 8000, 1000, 1400 |
|
Internal Separation |
Form 1,2b, 3a,4b,4 type 7 (Bs) |
|
Busbar Position |
Top/Rear |
|
|
|
|
2.Universal Mounting Design |
|
|
Mounting Design |
Fixed-mounted design with compartment door Plug-in |
|
Functions |
Cable feeders |
|
Rated Values |
Up to 6,30A |
|
Connetion Position |
Front/ Rear |
|
Cubicle width (mm) |
600, 1000, 1200 |
|
Internal Separation |
Form 3b, 4a, 4b, 4 type 7 (BS) |
|
Busbar Position |
Top/Rear |
|
|
|
|
3.Fixed mounting Design |
|
|
Mounting Design |
Fixed-mounted design with front cover Plug-in |
|
Functions |
Cable feeders |
|
Rated Values |
Up to 6,30A |
|
Connetion Position |
Front |
|
Cubicle width (mm) |
1000, 1200 |
|
Internal Separation |
Form 1, 2b,3b,4a,4b |
|
Busbar Position |
Top/Rear |
|
|
|
|
4.Inline design plug in |
|
|
Mounting Design |
Plug-in |
|
Functions |
Cable feeders |
|
Rated Values |
Up to 6,30A |
|
Connetion Position |
Front/ Rear |
|
Cubicle width (mm) |
1000, 1200 |
|
Internal Separation |
Form 3b, 4b |
|
Busbar Position |
Top/Rear |
|
|
|
|
5.In-Line design fixed-mounted |
|
|
Mounting Design |
Fixed-mounted design |
|
Functions |
Cable feeders |
|
Rated Values |
Up to 6,30A |
|
Connetion Position |
Front |
|
Cubicle width (mm) |
600, 800, 1000 |
|
Internal Separation |
Form 1, 2b |
|
Busbar Position |
Rear |
|
|
|
|
6.Reactive power compensation |
|
|
Mounting Design |
Fixed-mounted design |
|
Functions |
Central reactive power compensation |
|
Rated Values |
Unchoked up to 600 kvar Choked up to 500 kvar |
|
Connetion Position |
Front |
|
Cubicle width (mm) |
800 |
|
Internal Separation |
Form 1, 2b |
|
Busbar Position |
Without/Top/Rear |
|
|
|
